G80 Clevis Shortening Grab Hook With Safety Pin
G80 Clevis Shortening Grab Hook With Safety Pin
Size: 6mm-16mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for EN818-2 G80 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

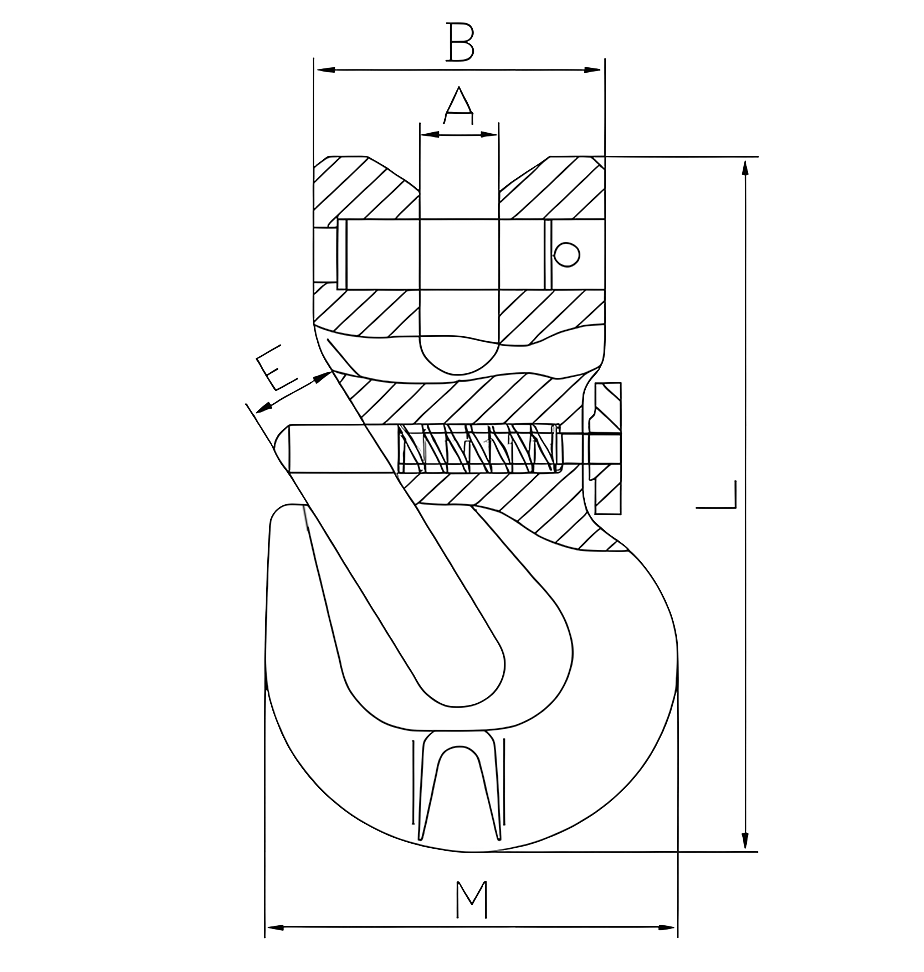

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±0.5 | B±1.2 | E±0.5 | M±2 | L±2 |
| 6 | 0.28 | 1.12 | 4.48 | 8 | 32 | 8 | 43.5 | 75 |
| 7/8 | 0.33 | 2 | 8 | 9.5 | 35 | 11 | 50 | 89 |
| 10 | 0.88 | 3.15 | 12.6 | 12.5 | 45.5 | 13 | 72 | 126.5 |
| 13 | 1.85 | 5.3 | 21.2 | 15 | 53 | 16.5 | 96 | 163.5 |
| 16 | 3.24 | 8 | 32 | 18.5 | 69.5 | 19 | 112.5 | 183.5 |
Ultimate Load is 4 times the Working Load Limit
Above Working Load Limit is based on side pull
