G80 Deep Throat Eye Grab Hook
G80 Deep Throat Eye Grab Hook
Size: 6mm-13mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

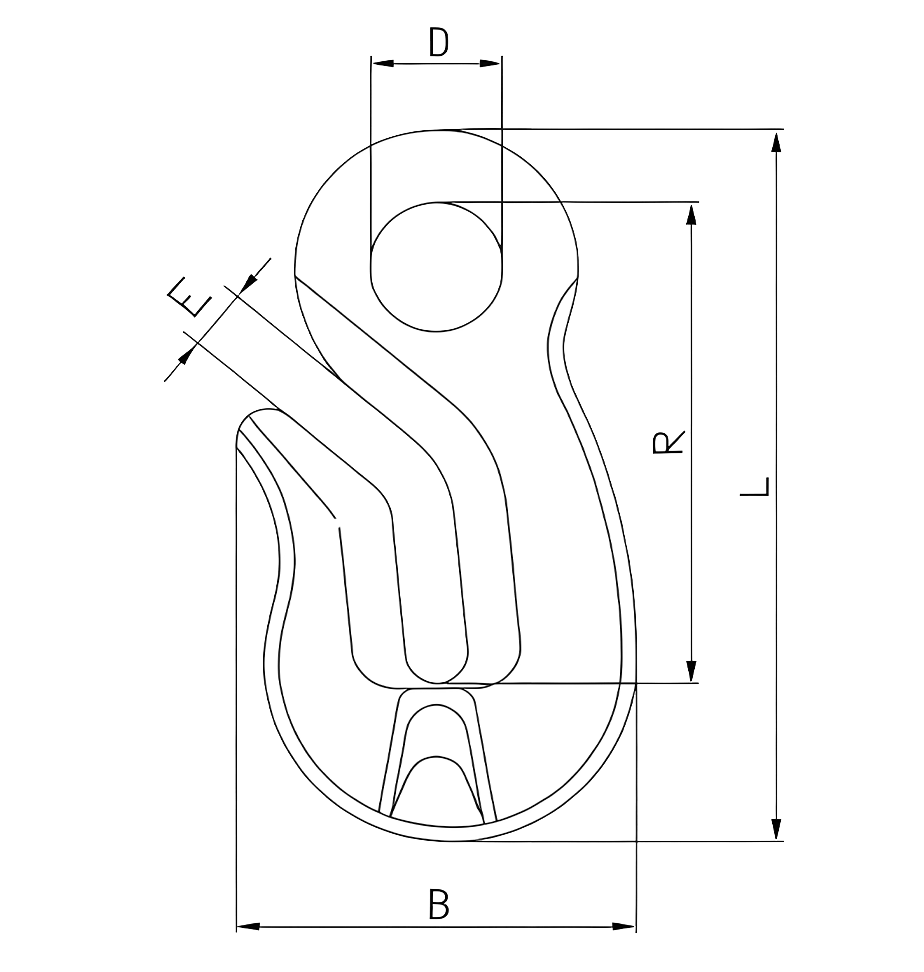

| Chain Size | Weight (Kg) | WLL (T) | BF (T) | D±1 | E±0.3 | B±1.2 | R±1.5 | L±1.5 |
| 6 | 0.16 | 1.12 | 4.48 | 15 | 7 | 45 | 56 | 83 |
| 7/8 | 0.35 | 2 | 8 | 16 | 9.6 | 52 | 74.3 | 106.5 |
| 10 | 0.75 | 3.15 | 12.6 | 21 | 13 | 66 | 84.5 | 124.5 |
| 13 | 1.5 | 5.3 | 21.2 | 26 | 16.5 | 96 | 114 | 170 |
Ultimate Load is 4 times the Working Load Limit
Above Working Load Limit is based on side pull
