G80 Clevis Grab Hook
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

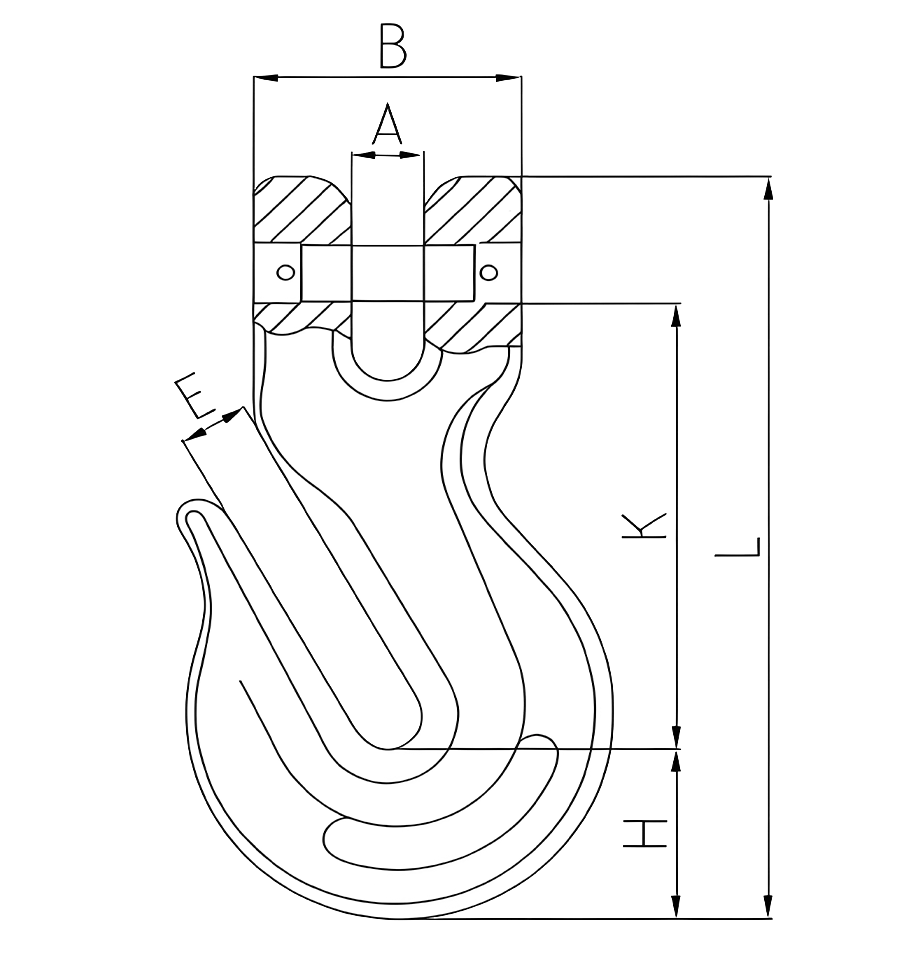

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±2 | B±2 | E±2 | H±3 | K±3 | L±3 |
| 1/4 | 0.22 | 1.2 | 4.8 | 8 | 34 | 8 | 19.5 | 57 | 90.5 |
| 9/32 | 0.31 | 2 | 8 | 9.5 | 41 | 9.5 | 23 | 65.3 | 106.5 |
| 3/8 | 0.7 | 3.2 | 12.8 | 12.7 | 46 | 12.5 | 31 | 82 | 137 |
| 1/2 | 1.8 | 5.4 | 21.6 | 16 | 61 | 16.7 | 43 | 113 | 184.5 |
| 5/8 | 3.1 | 8.2 | 32.8 | 19.5 | 68.5 | 20 | 49 | 129.5 | 215 |
| 3/4 | 4.1 | 12.8 | 51.2 | 24 | 88 | 24 | 58 | 152 | 254 |
| 7/8 | 6.2 | 15.5 | 62 | 27 | 101 | 26 | 64.8 | 178 | 295 |
Ultimate Load is 4 times the Working Load Limit
Above Working Load Limit is based on side pull
