G80 U.S Type Eye Grab Hook
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

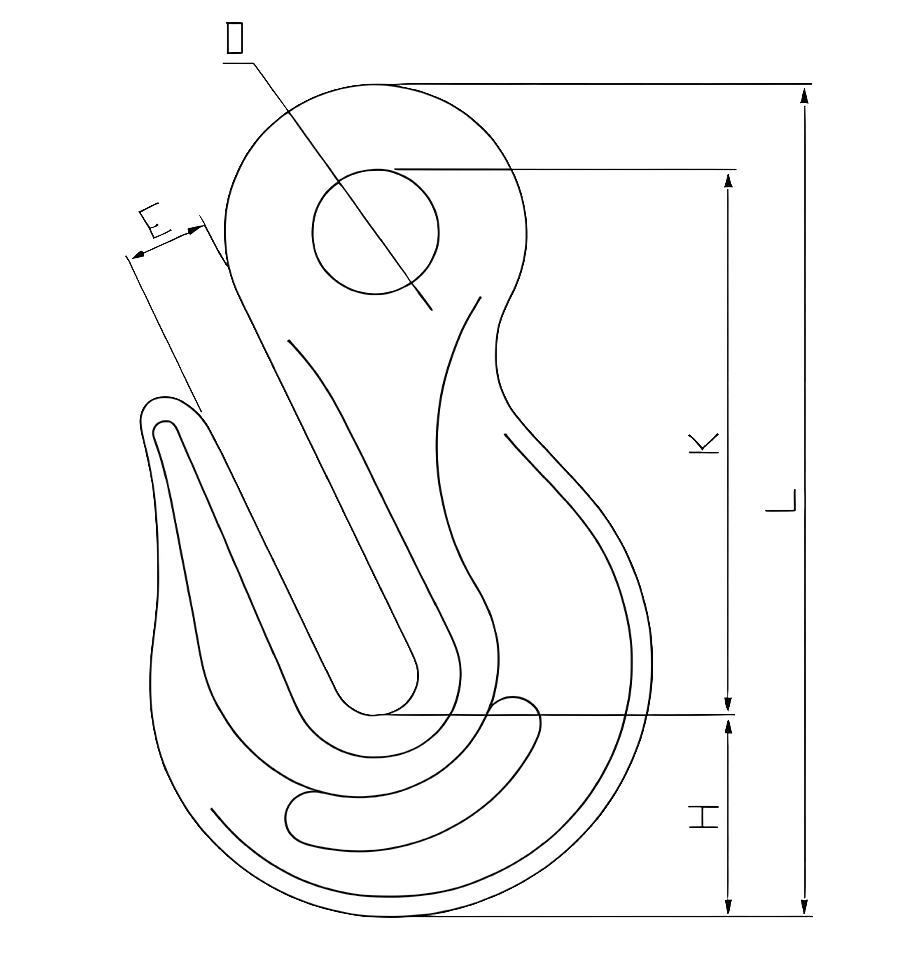

| Chain Size | Weight (Kg) | WLL (T) | BF (T) | E±0.5 | D±1 | H±1 | K±2 | L±2 |
| 1/4 | 0.13 | 1.2 | 4.8 | 8 | 13 | 19 | 54 | 81 |
| 9/32 | 0.27 | 2 | 8 | 9.5 | 15 | 23 | 64 | 98 |
| 3/8 | 0.55 | 3.2 | 12.8 | 12.5 | 20 | 30 | 82 | 125 |
| 1/2 | 1.3 | 5.4 | 21.6 | 17 | 25 | 42 | 106 | 165 |
| 5/8 | 2.48 | 8.2 | 32.8 | 20 | 30 | 49 | 127 | 196.6 |
| 3/4 | 3.8 | 12.8 | 51.2 | 23 | 34.5 | 56 | 152 | 231.6 |
| 7/8 | 5.8 | 15.5 | 62 | 28.6 | 40.5 | 65.6 | 175 | 267.6 |
Ultimate Load is 4 times the Working Load Limit
Above Working Load Limit is based on side pull
