G80 Swivel With Bearing

#1 MARINE HARDWARE

G80 Swivel With Bearing

Product attributes :

◆ Forged super alloy steel- Quenched and Tempered

◆ Suitable for EN818-2 G80 chain

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

Product Details


Chain SizeWeight
(Kg)
 WLL
 (T)
B.L
(T)

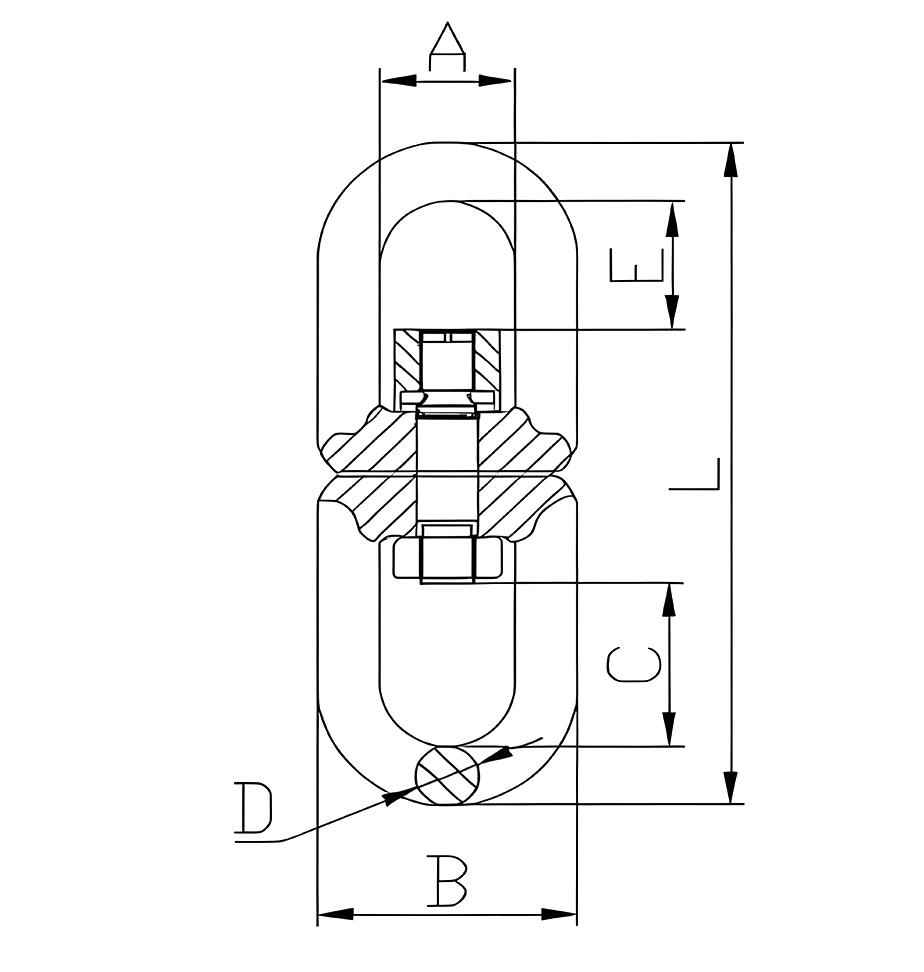

A±1B±2C±1.5D±1E±1.5L±2
101.85  3.15 12.6 38 76 51 19 34.8 209
135.5 5.3 21.2 60 116 77 28 60 312

Ultimate Load is 4 times the Working Load Limit
