G80 Clevis Link

#1 MARINE HARDWARE

G80 Clevis Link

Product attributes :

◆ Forged super alloy steel- Quenched and Tempered

◆ Suitable for EN818-2 G80 chain

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)

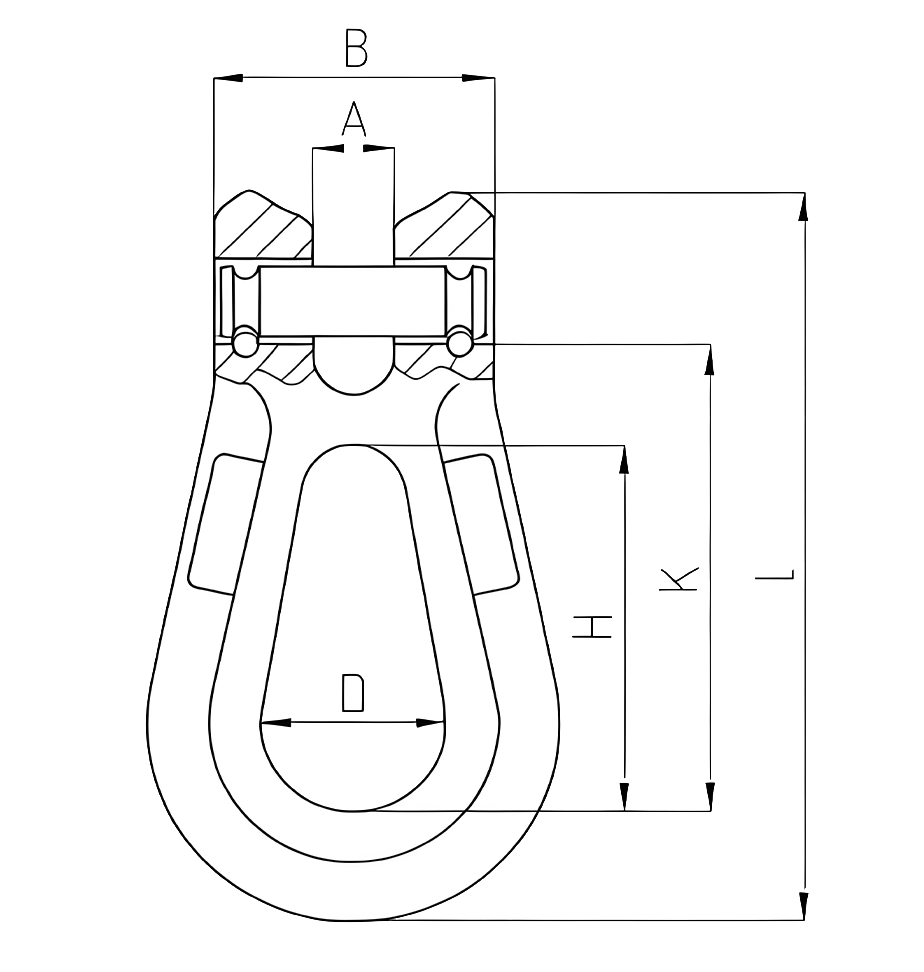

A±0.5B±1.2D±1H±1.2K±1.5L±2
7/80.22 9.5 33 27 45 69 102
100.48 3.15 12.6 13 45.5 27 45 72 116

Ultimate Load is 4 times the Working Load Limit
