G80 Eye Elephant Foot
G80 Eye Elephant Foot
Size: 13mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for G80 Lashing chain
Quality control:
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

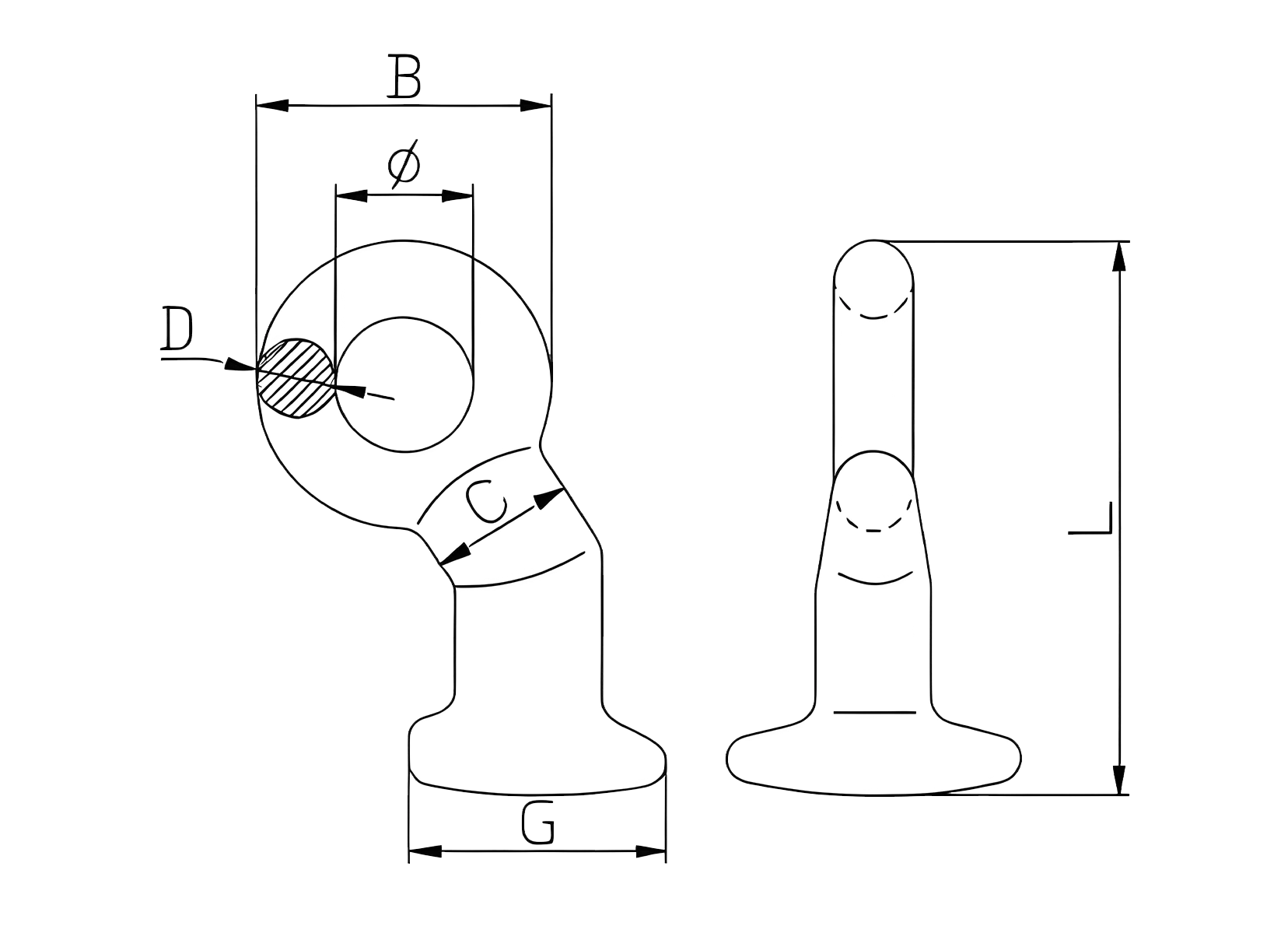

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Φ±1 | B±1 | C±1 | D±0.5 | G±1 | L±2 |
| 13 | 0.67 | 5 | 20 | 28 | 60 | 30 | 16 | 52.5 | 116 |
Ultimate Load is 4 times the Working Load Limit
