G80 Lashing Type Hook

#1 MARINE HARDWARE

G80 Lashing Type Hook

Product attributes :

G80 Lashing Type Hook

Size: 9mm-13mm

Surface finish: Powder coating

Surface Colour: Red, Yellow

Material: Super Alloy steel

Manufacturing process: Forged - Quenched and Tempered

Quality control:

◆ Individually proof test at 2.5 times Working Load Limit

 Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

Note:

◆ Features quick and easy assembly

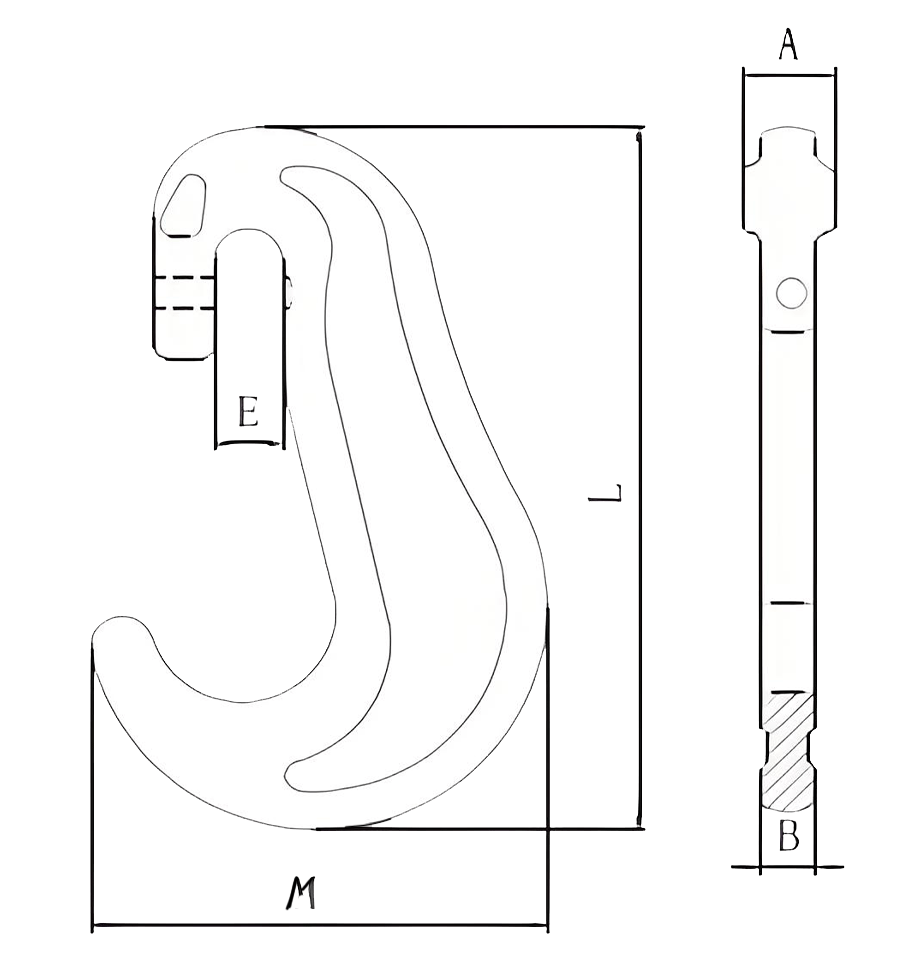

Product Details


Chain SizeWeight
(Kg)
  WLL
  (T)
B.L
(T)
ABEML
90.51 2.5 10 22.5±112±0.513.5±0.590.5±2143±2
110.95 3.75 15 23.5±114±0.515.8±0.5109.5±2177±2
131.4 5.4 21.6 31±116±118±1129±3207±3

Ultimate Load is 4 times the Working Load Limit
