G80 Eye Shortening Grab Hook With Safety Pin
G80 Eye Shortening Grab Hook With Safety Pin
Size: 7/8mm-16mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

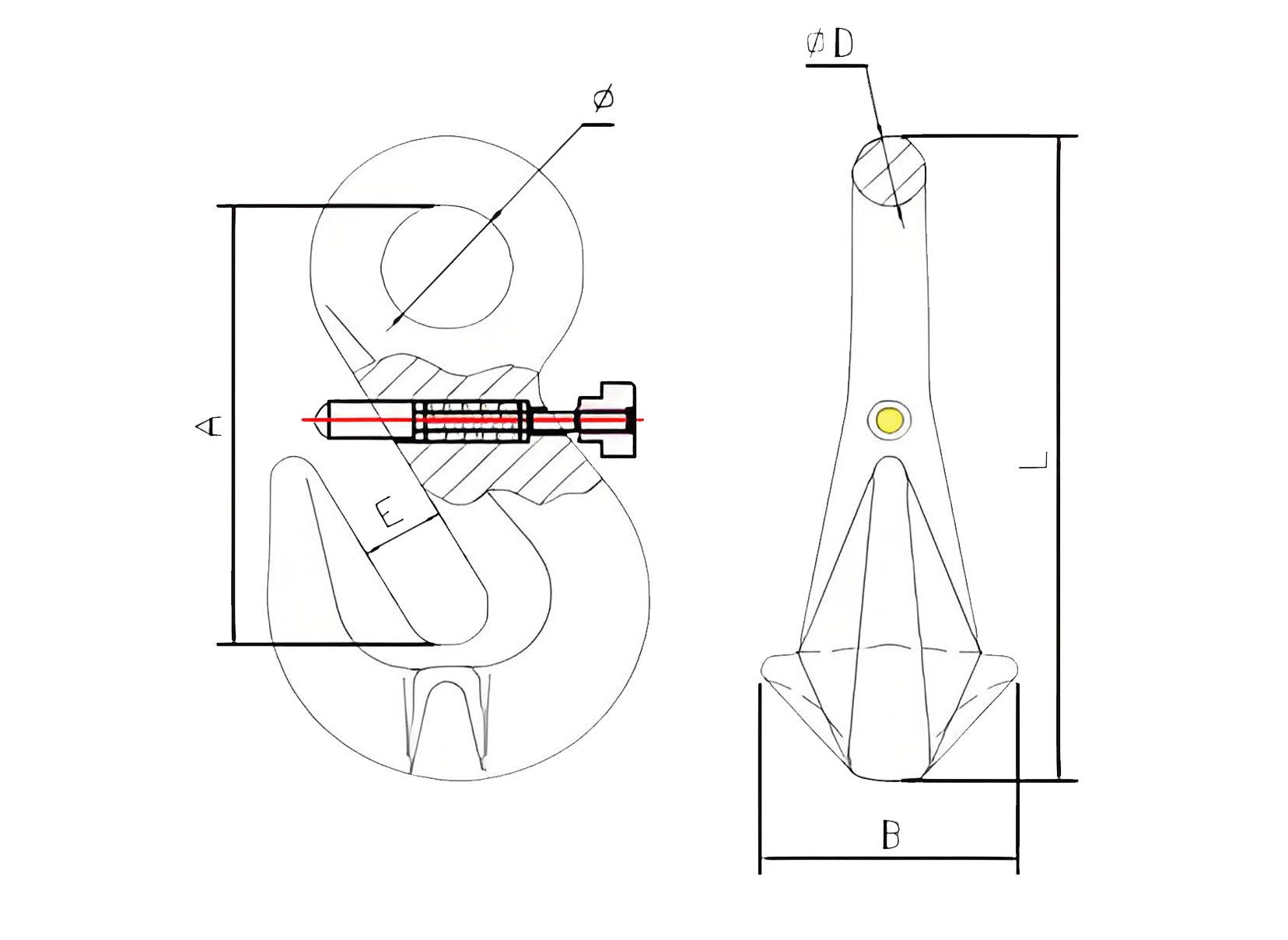

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | D | E | L | Φ |
| 7/8 | 0.29 | 2 | 8 | 60±2 | 33.5±1 | 9.5±1 | 10.5±1 | 88.5±1.2 | 17±1 |
| 10 | 0.75 | 3.15 | 12.6 | 80±2 | 46±1 | 13±1 | 13+1-1.5 | 121.5±3 | 20±1 |
| 13 | 1.62 | 5.3 | 21.2 | 100±3 | 57.5±2 | 15.5±2 | 16.5+1-2 | 158±3 | 26±1.5 |
| 16 | 3.0 | 10 | 40 | 119±4 | 74±3 | 19±2 | 18.5+1-2 | 183±4 | 36±2 |
Ultimate Load is 4 times the Working Load Limit
Above Working Load Limit is based on side pull
