G80 Weld On Pivoting D Link
G80 Weld On Pivoting D Link
Size: 1Ton-15Ton
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ With spring inside for better pivoting control
◆ Welding is to be performed by a qualified welder
Product Details

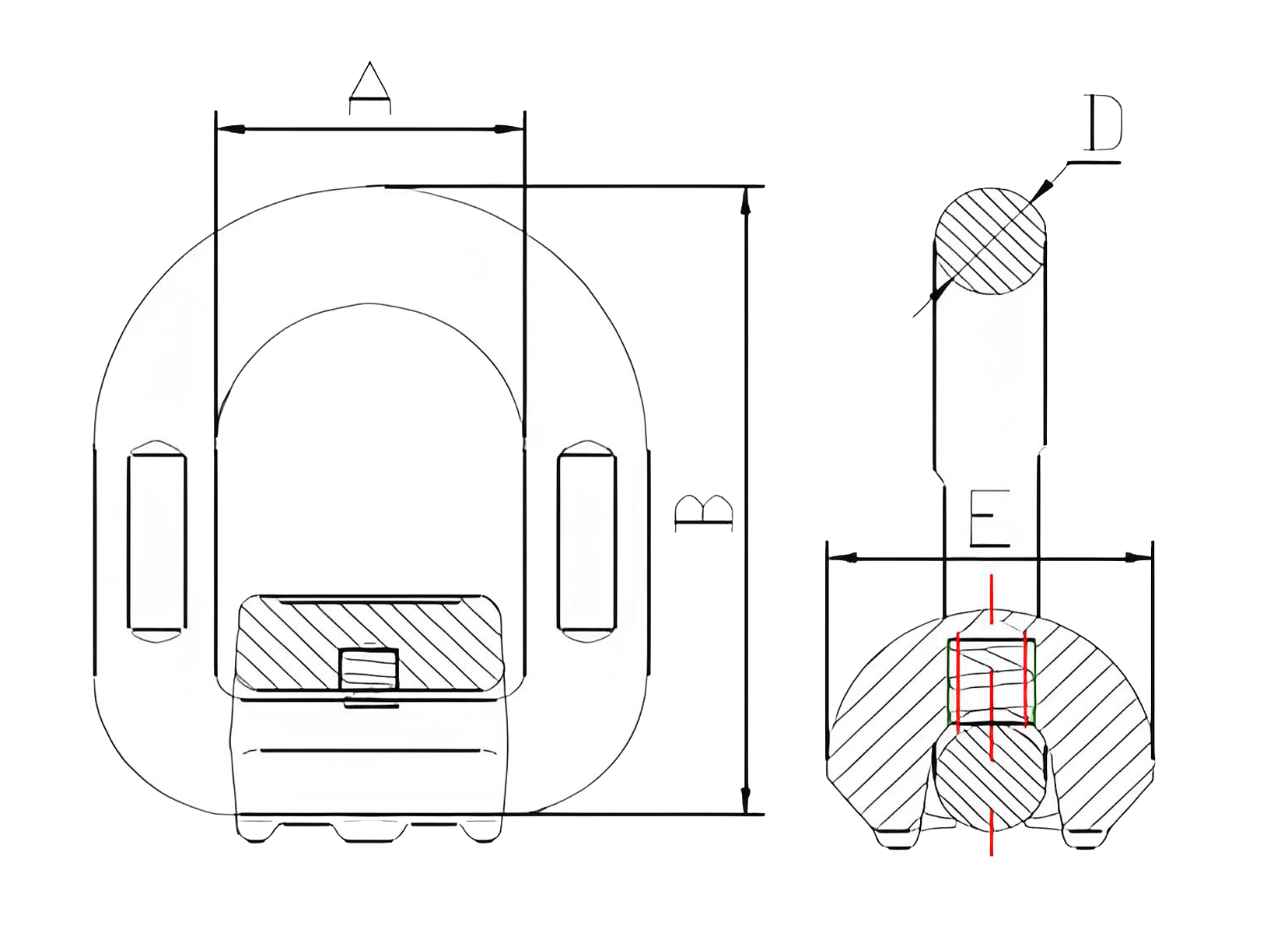

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | D | E |
| 1T | 0.47 | 1.12 | 4.48 | 41±2 | 78.5±3 | 13±1 | 38±2 |
| 2T | 0.51 | 2 | 8 | 42±2 | 88±3 | 14±1 | 40±2 |
| 3T | 0.69 | 3.15 | 12.6 | 46±2 | 94±3 | 17±1 | 43±2 |
| 5T | 1.46 | 5.3 | 21.2 | 55±3 | 118±4 | 22±2 | 61±3 |
| 8T | 2.52 | 8 | 32 | 70±3 | 141±4 | 26.5±2 | 70.5±3 |
| 10T | 3.59 | 10 | 40 | 85±4 | 165±5 | 28±3 | 76±4 |
| 15T | 5.79 | 15 | 60 | 97±4 | 188±5 | 34±3 | 90±4 |
Ultimate Load is 4 times the Working Load Limit
