G80 Forged D Ring
G80 Forged D Ring
Size: 2.5Ton-8Ton
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

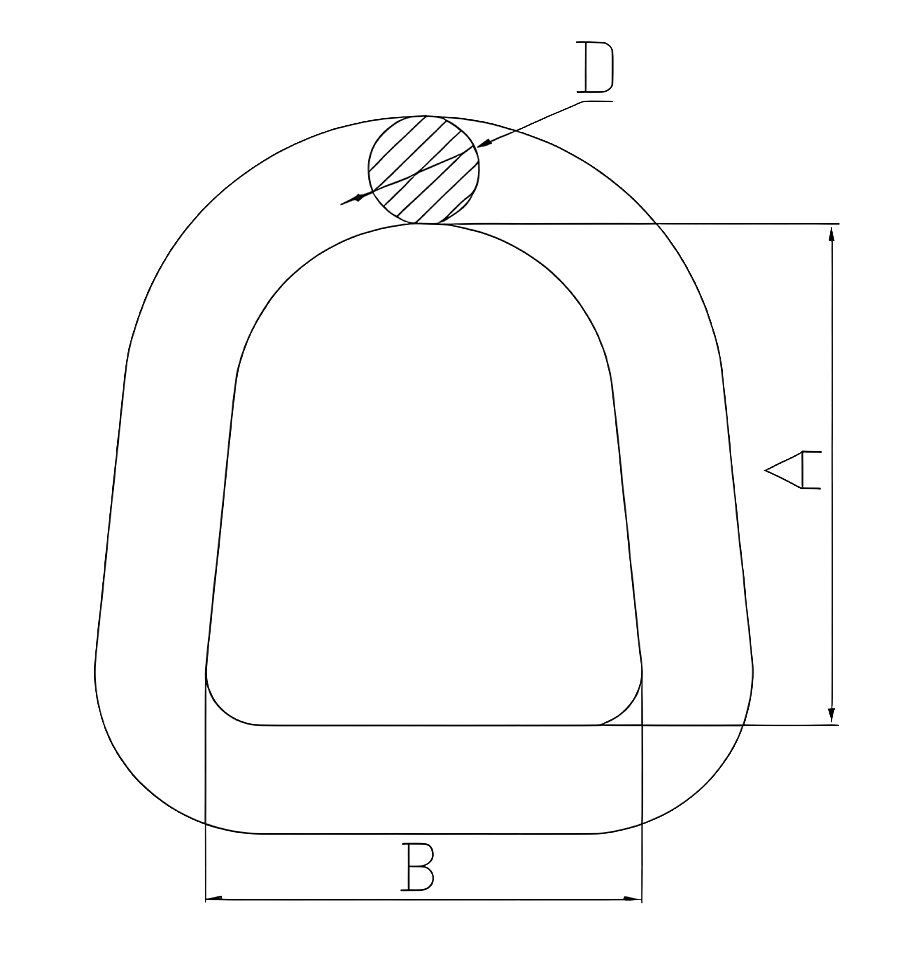

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±1.5 | B±1.5 | D±1 |
| 2.5T | 0.3 | 2.5 | 10 | 65 | 55 | 14 |
| 4T | 0.48 | 4 | 16 | 62 | 64 | 17 |
| 6.5T | 0.71 | 6.5 | 26 | 80 | 72 | 19 |
| 8T | 1 | 8 | 32 | 90 | 75 | 22 |
Ultimate Load is 4 times the Working Load Limit
