JIS F7301 Marine Bronze Globe Valve
Pressure: 5K
Size: DN15-DN40
Material: Brass,bronze
Type: Globe valve
Media: Water,Oil,Steam
TECHNICAL REQUIREMENT
DESIGN STANDARD: JIS F7301-1996
TEST: JISF7400-1996
TEST PRESSURE/MPA
BODY: 1.05 SEAT:0.77
#2 MARINE EQUIPMENT
JIS F7301 5K Marine Bronze Globe Valve
JIS F7301 Marine Bronze Globe Valve
Pressure: 5K
Size: DN15-DN40
Material: Brass,bronze
Type: Globe valve
Media: Water,Oil,Steam
TECHNICAL REQUIREMENT
DESIGN STANDARD: JIS F7301-1996
TEST: JISF7400-1996
TEST PRESSURE/MPA
BODY: 1.05 SEAT:0.77

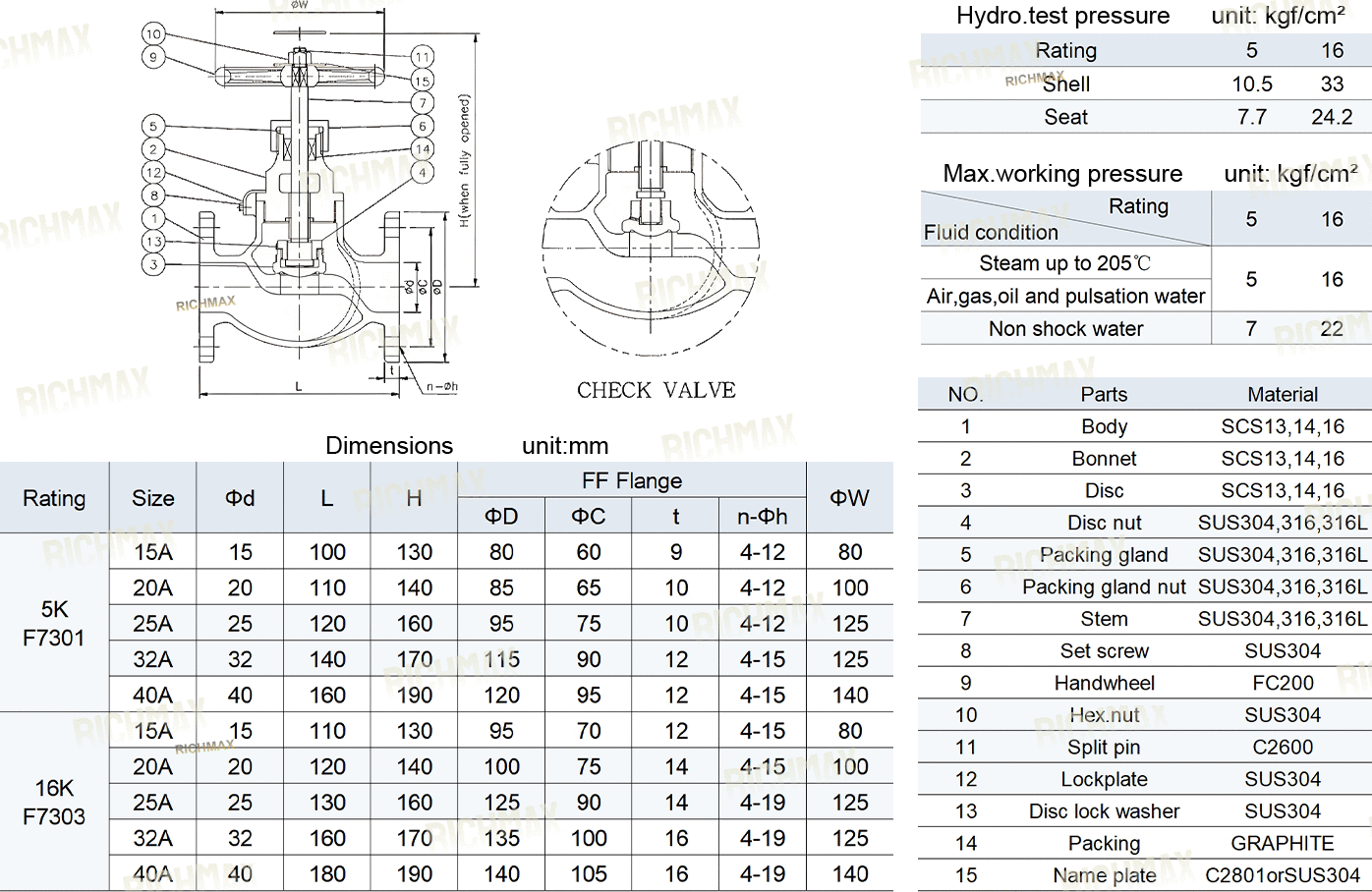

Product Details
| DN | L | H | Flange Dimensions | Hand Wheel | ||||||||||||||||
| D | C | t | n | d | Do | S | ||||||||||||||
| 15 | 100 | 130 | 80 | 60 | 9 | 4 | 12 | 80 | 8 | |||||||||||
| 20 | 110 | 140 | 85 | 65 | 10 | 4 | 12 | 100 | 10 | |||||||||||
| 25 | 120 | 160 | 95 | 75 | 10 | 4 | 12 | 125 | 10 | |||||||||||
| 32 | 140 | 170 | 115 | 90 | 12 | 4 | 15 | 125 | 10 | |||||||||||
| 40 | 160 | 190 | 120 | 95 | 12 | 4 | 15 | 140 | 12 | |||||||||||
| 50 | 210 | 235 | 130 | 105 | 14 | 4 | 15 | 140 | 12 | |||||||||||
| 65 | 250 | 260 | 155 | 130 | 14 | 4 | 15 | 160 | 14 | |||||||||||
| Nominal Pressure | 5kgf/cm²(0.49Mpa) | |
| Seal Pressure | 7.7kgf/cm²(0.76Mpa) | |
Intensity Pressure | 10.5kgf/cm²(1.046Mpa) | |
| Medium | Max Pressure kgf/cm² | |||||||||||||||||||
| Oil&flow water | 5kgf/cm²(0.49Mpa) | |||||||||||||||||||
| Lenitic water≤120° | 7kgf/cm²(0.69Mpa) | |||||||||||||||||||
