JIS F7334 Marine Bronze Hose Angle Valve 5K/10K

#2 MARINE EQUIPMENT

Product attributes :

Marine Bronze Hose Angle Valve

Brand: RM

Standard: JIS F7334

Pressure: 5K,10K

Size: DN15-DN40

Material: cast iron,cast steel,forged steel,brass,bronze

Type: Hose Angle Valve

Media: Water,Oil,Steam

Our JIS F7334 Marine Bronze Hose Angle Valve 5K/10K is manufactured using premium bronze material, ensuring excellent durability and corrosion resistance in seawater applications.

This valve is specifically designed for ship pipelines, enabling efficient control of seawater flow and providing long-term reliability in marine environments.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

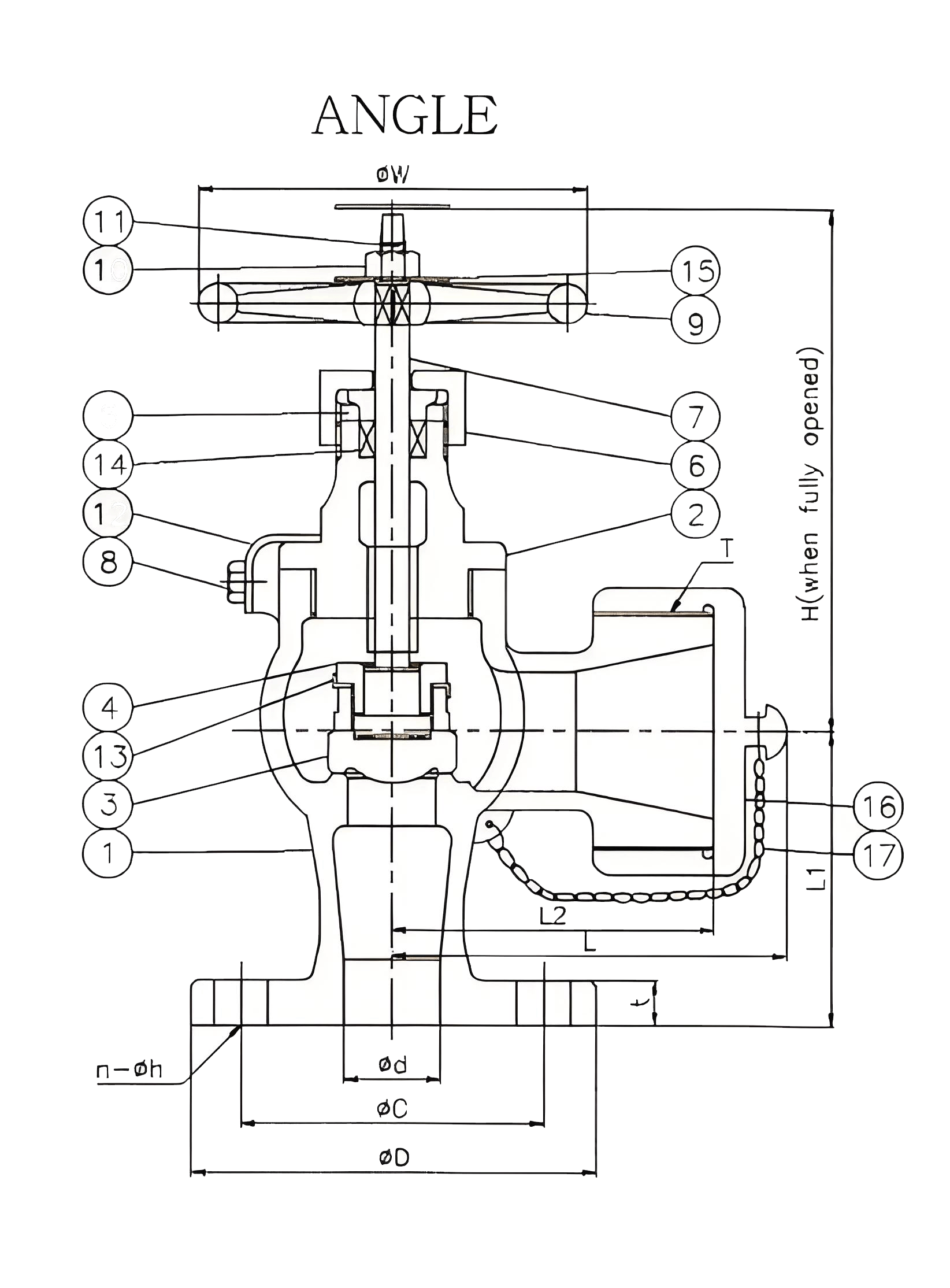

Dimensions -Angle type unit:mm
Rating	SIZE	φd	L1	L2	L	H	T	FF Flange				φW
Rating	SIZE	φd	L1	L2	L	H	T	φD	φC	t	n-φh	φW
5K	15A	15	55	55	68	120	M42x2	80	60	9	4-12	80
10K	15A	15	70	60	73	120		95	70	12	4-15	80
5K	25A	25	65	65	78	145		95	75	10	4-12	125
10K	25A	25	85	70	83	145		125	90	14	4-19	125
5K	40A	40	85	75	123.5	165	M52x2	120	95	12	4-15	140
10K	40A	40	100	75	123.5	165	M52x2	140	105	16	4-19	140
5K	50A	50	100	100	154.8	225	M64x2	130	105	14	4-15	160
10K	50A	50	120	105	159.8	240	M64x2	155	120	16	4-19	160
5K	65A	65	130	120	179.8	255	M80x2	155	130	14	4-15	200
10K	65A	65	130	120	179.8	255	M80x2	175	140	18	4-19	200

NO.	Parts	Material
1	Body	CAC406(BC6)
2	Bonnet	C3771
3	Disc	C3771
4	Disc nut	C3604
5	Packing gland	C3604
6	Packing gland nut	C3604
7	Stem	C3771
8	Stet screw	SUS304
9	Handwheel	FC200
10	Hex.nut	C3604
11	Split pin	C2600
12	Lockplate	C2600
13	Disc lock washer	C2600
14	Packing	GRAPHITE
15	Name plate	C2801orSUS304
16	Cap	C3771
17	Chain	SUS304
