JIS F7363 Marine Cast Iron Gate Valve
Pressure: 5K
Size: DN50-DN250
Material: Cast iron, ductile iron
Type: Gate valve
Media: Water,Oil,Steam
TECHNICAL REQUIREMENT
DESIGN STANDARD:JIS F7363-1996
TEST:JIS F 7400-1996
TEST PRESSURE/MPA
BODY: ≤400:2.1
#1 MARINE HARDWARE
JIS F7363 5K Marine Cast Iron Gate Valve
JIS F7363 Marine Cast Iron Gate Valve
Pressure: 5K
Size: DN50-DN250
Material: Cast iron, ductile iron
Type: Gate valve
Media: Water,Oil,Steam
TECHNICAL REQUIREMENT
DESIGN STANDARD:JIS F7363-1996
TEST:JIS F 7400-1996
TEST PRESSURE/MPA
BODY: ≤400:2.1

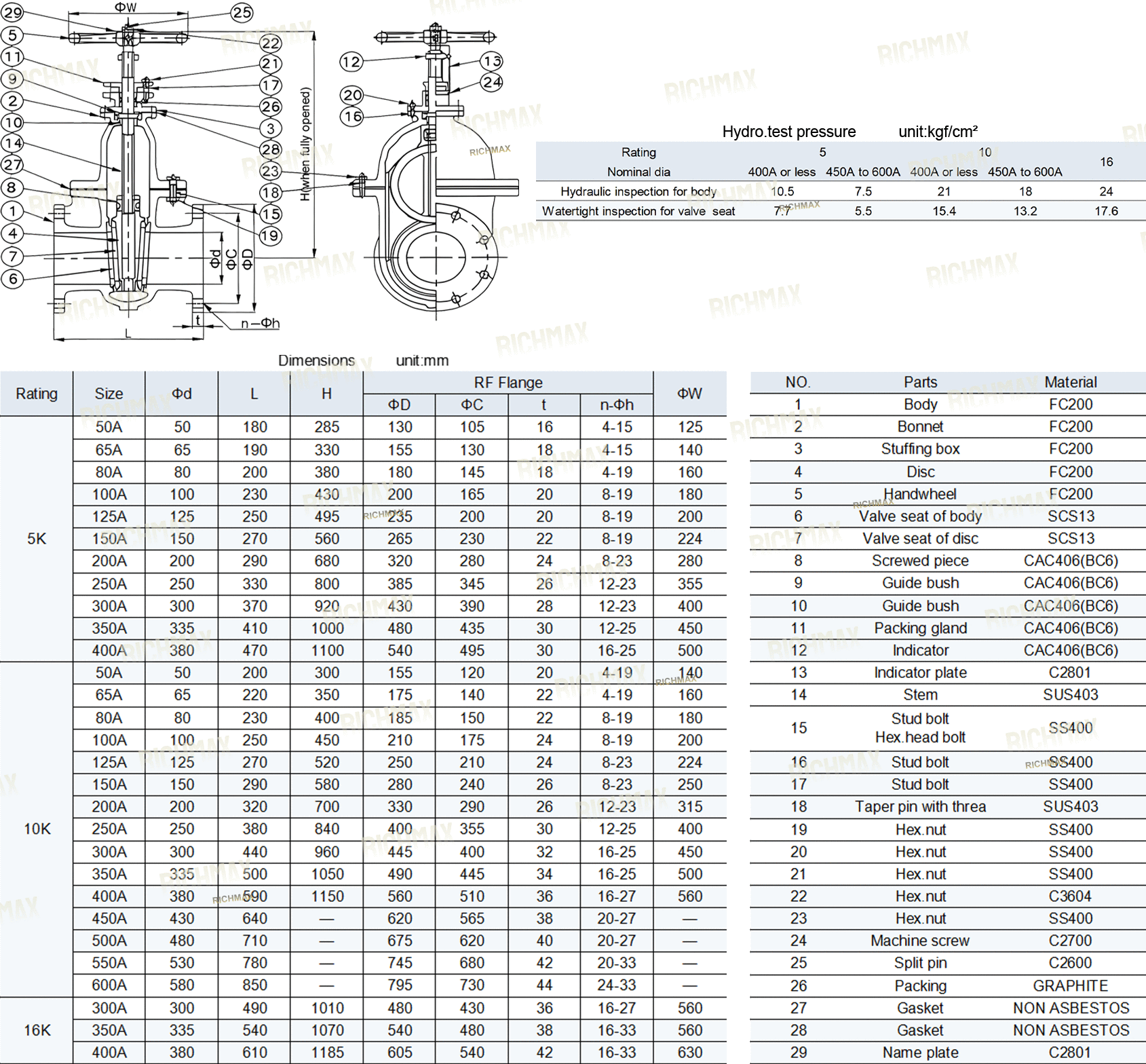

Product Details
| DN | L | D | c | n-d | t | H | D1 | B2 | Weight kg | ||||||||||||
| 50 | 180 | 130 | 105 | 4-15 | 16 | 285 | 125 | 153 | 13.5 | ||||||||||||
| 65 | 190 | 155 | 130 | 4-15 | 18 | 330 | 140 | 172 | 19 | ||||||||||||
| 80 | 200 | 180 | 145 | 4-19 | 18 | 380 | 160 | 195 | 24.2 | ||||||||||||
| 100 | 230 | 200 | 165 | 8-19 | 20 | 430 | 180 | 230 | 35.3 | ||||||||||||
| 125 | 250 | 235 | 200 | 8-19 | 20 | 495 | 200 | 265 | 48.1 | ||||||||||||
| 150 | 270 | 265 | 230 | 8-19 | 22 | 560 | 224 | 295 | 65.3 | ||||||||||||
| 200 | 290 | 320 | 280 | 8-23 | 24 | 680 | 280 | 365 | 103 | ||||||||||||
| 250 | 330 | 385 | 345 | 12-23 | 26 | 800 | 355 | 438 | 164 | ||||||||||||
| Nominal Pressure | 5kgf/cm²(0.49Mpa) | |
| Seal Pressure | 7.7kgf/cm²(0.76Mpa) | |
| Intensity Pressure | 10.5kgf/cm²(1.03Mpa) | |
| Medium | Max Pressure kgf/cm² | ||||||||||||||||||||
| Saturation steam | <2003kgf/cm² | <2502kgf/cm² | |||||||||||||||||||
| Oil&flow water | 5kgf/cm²(Mpa) | ||||||||||||||||||||
| Lenitic water≤120° | 7kgf/cm²(Mpa) | ||||||||||||||||||||
