JIS F7302 5K Marine Bronze Angle Valve
JIS F7302 Marine Bronze Angle Valve
Standard: JlS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure: 5K10/K/16K
Size: DN15-DN300
Material: cast iron,cast steel,forged steel,brass,bronze
Type: globe valve,angle valve
Media: Water,Oil,steam
TECHNICAL REQUIREMENT
DESIGN STANDARD: JIS F7301-1996
TEST: JIS F 7400-1996
TEST PRESSURE/MPA
BODY: 1.05 SEAT: 0.77

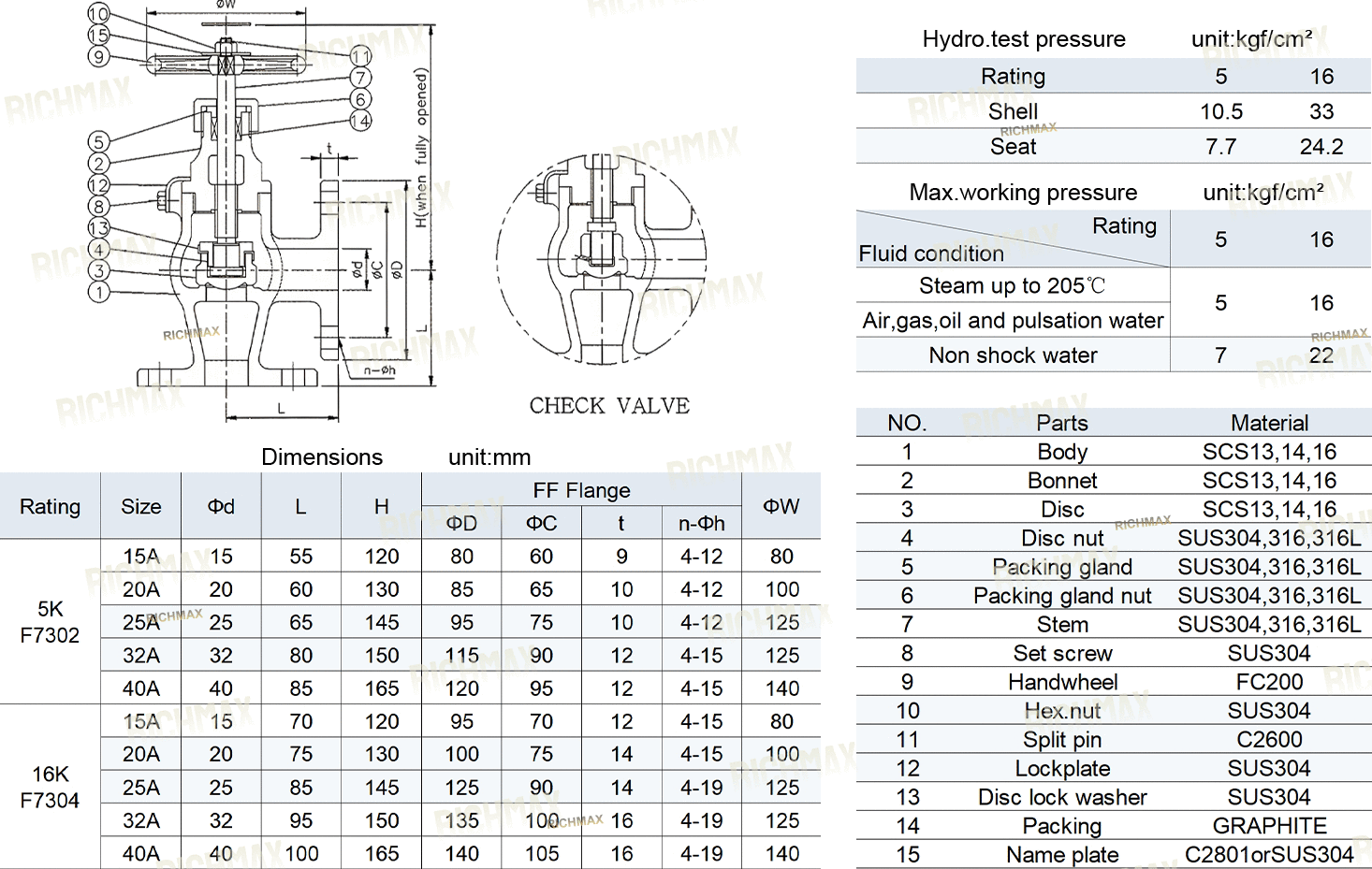

Product Details
| DN | L | H | Flange Dimensions | Hand Wheel | ||||||||||||||||
| D | C | t | n | d | Do | S | ||||||||||||||
| 15 | 55 | 120 | 80 | 60 | 9 | 4 | 12 | 80 | 8 | |||||||||||
| 20 | 60 | 130 | 85 | 65 | 10 | 4 | 12 | 100 | 10 | |||||||||||
| 25 | 65 | 145 | 95 | 75 | 10 | 4 | 12 | 125 | 10 | |||||||||||
| 32 | 80 | 150 | 115 | 90 | 12 | 4 | 15 | 125 | 10 | |||||||||||
| 40 | 85 | 165 | 120 | 95 | 12 | 4 | 15 | 140 | 12 | |||||||||||
| 50 | 100 | 200 | 130 | 105 | 14 | 4 | 15 | 140 | 12 | |||||||||||
| 65 | 115 | 220 | 155 | 130 | 14 | 4 | 15 | 160 | 14 | |||||||||||
| Nominal Pressure | 5kgf/cm²(0.49Mpa) | |
| Seal Pressure | 7.7kgf/cm²(0.76Mpa) | |
| Intensity Pressure | 10.5kgf/cm²(1.046Mpa) | |
| Medium | Max Pressure kgf/cm² | |||||||||||||||||||
| Oil&flow water | 5kgf/cm²(0.49Mpa) | |||||||||||||||||||
| Lenitic water≤120° | 7kgf/cm²(0.69Mpa) | |||||||||||||||||||
Made of premium bronze material, the valve ensures excellent durability, resistance to corrosion, and long service life in marine environments.
Manufactured in accordance with JIS F7302 5K standards, guaranteeing safety, reliability, and compatibility with shipbuilding requirements.
The angle body structure makes installation more convenient and saves space in compact ship pipeline systems.
Engineered for stable operation, the valve provides secure shut-off and accurate flow regulation in ship pipelines.
