JIS F7367/7368 Marine Bronze Gate Valve 5K/10K

Product attributes :

Marine Bronze Swing Check Valve 5K

Brand: RM

Standard: JIS F7367/7368

Pressure: 5K,10K

Size: DN15-DN40

Material: cast iron,cast steel,forged steel,brass,bronze

Type: Gate valve

Media: Water,Oil,Steam

Our JIS F7367/7368 Marine Bronze Gate Valve 5K/10K is engineered with premium bronze material to ensure durability and reliable performance in seawater environments.

These valves strictly follow JIS F7367 and F7368 standards, making them suitable for shipbuilding and marine applications with guaranteed quality and compatibility.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

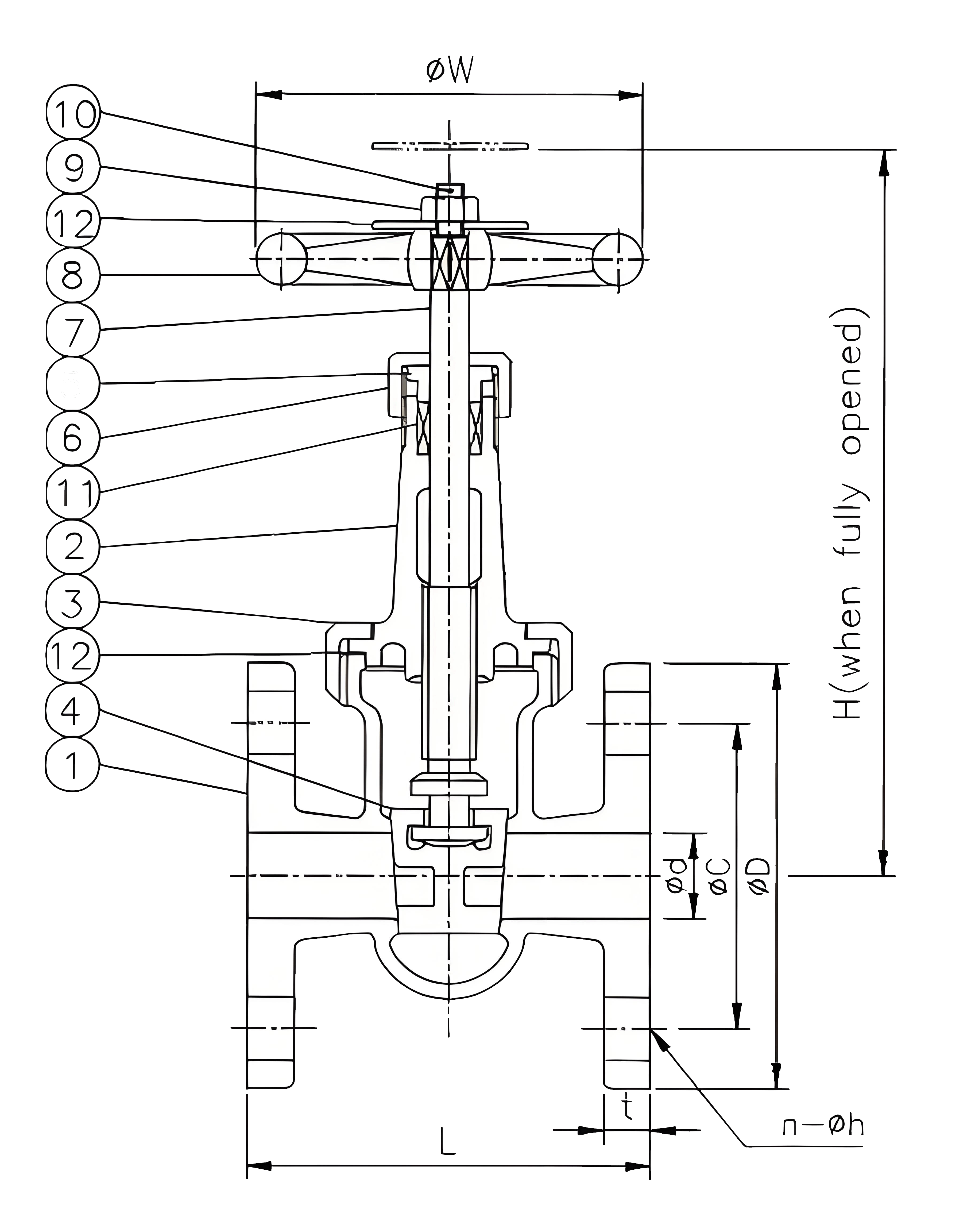

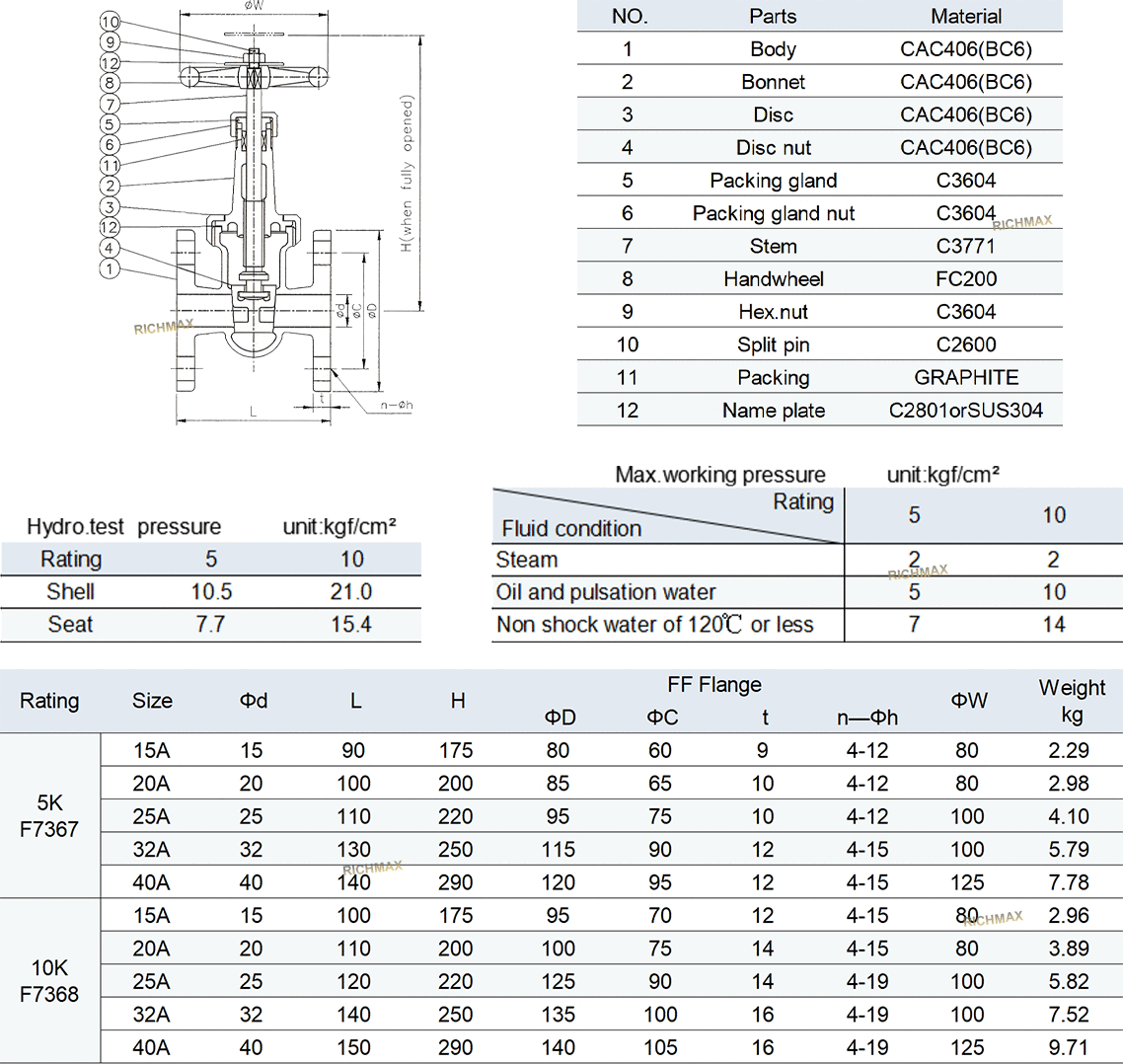

Rating	SIZE	φd	L	H	FF Flange				φW	Weight (kg)
Rating	SIZE	φd	L	H	φD	φC	t	n—φh	φW	Weight (kg)
5K F7367	15A	15	90	175	80	60	9	4-12	80	2.29
	20A	20	100	200	85	65	10	4-12	80	2.98
	25A	25	110	220	95	75	10	4-12	100	4.10
	32A	32	130	250	115	90	12	4-15	100	5.79
	40A	40	140	290	120	95	12	4-15	125	7.78
10K F7368	15A	15	100	175	95	70	12	4-15	80	2.96
	20A	20	110	200	100	75	14	4-15	80	3.89
	25A	25	120	220	125	90	14	4-19	100	5.82
	32A	32	140	250	135	100	16	4-19	100	7.52
	40A	40	150	290	140	105	16	4-19	125	9.71

NO.	Parts	Material
1	Body	CAC406(BC6)
2	Bonnet	CAC406(BC6)
3	Disc	CAC406(BC6)
4	Disc nut	CAC406(BC6)
5	Packing gland	C3604
6	Packing gland nut	C3604
7	Stem	C3771
8	Handwheel	FC200
9	Hex.nut	C3604
10	Split pin	C2600
11	Packing	GRAPHITE
12	Name plate	C2801orSUS304
