Structure

A Marine End Shackle consists of a curved shackle body, two end sections and a transverse pin. The body provides the main load-bearing structure, while the pin closes the opening and forms the connection between the shackle and the mating component.

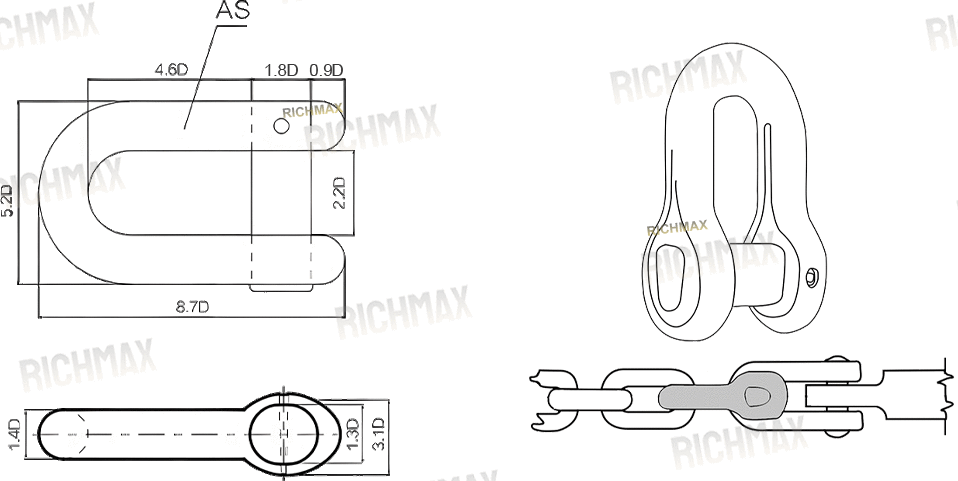

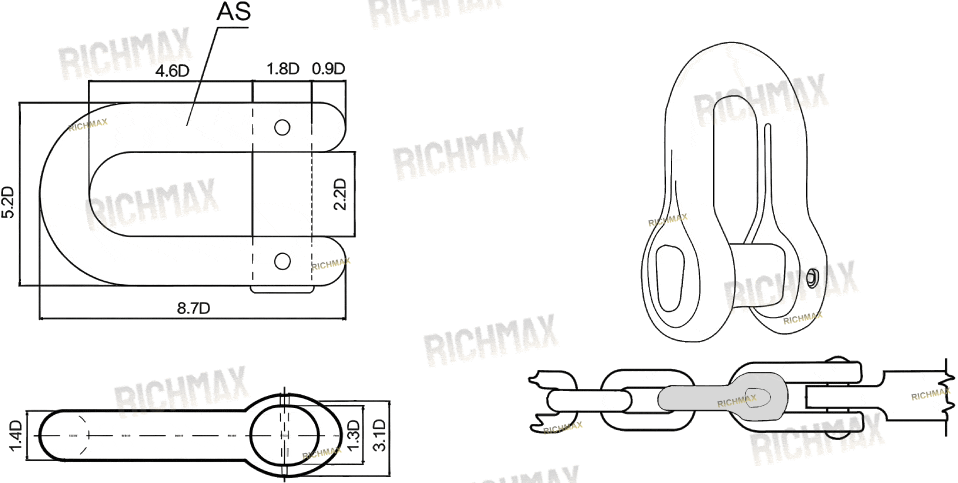

The geometry of the shackle determines how it fits around a chain link, swivel eye or other connecting fitting. The internal width, opening, body diameter and pin dimensions must be compatible with the components on both sides of the connection.

Shackle Body

The shackle body is the main load-bearing component. Its curved shape provides an enclosed connection point while allowing sufficient clearance for the connected fitting.

Important dimensional parameters include:

• Body material diameter or cross-section

• Internal width

• Internal length

• Overall length

• Overall width

• Crown radius

Distance between the two pin-bearing sections

The body dimensions determine the available connection space and influence how the load is transferred through the fitting.

The body should have a consistent cross-section without visible cracks, folds, severe surface defects or unacceptable deformation. The transition between the curved section and the pin-bearing ends is particularly important because these areas form part of the load-bearing structure.

Pin

The transverse pin passes through the two end sections of the shackle body and completes the connection.

Its diameter, effective bearing length and fit must correspond to the shackle design. The pin is subjected to bearing forces and shear loading during operation.

The pin should be correctly seated in the body. Excessive clearance may cause impact or uneven contact, while an incorrect fit may prevent proper assembly.

Pin Locking Arrangement

The pin-retaining arrangement prevents unintended movement or loosening during service.

As shown in the product image, the shackle has a locking feature on the side of the body. Its exact construction and retention method should be confirmed against the product drawing.

The locking arrangement should be checked for correct installation and secure retention before the shackle is put into service.

Connection Geometry

The connection geometry must match the adjoining equipment.

For anchor chain applications, the shackle opening and internal dimensions should provide sufficient clearance for the specified chain link or connecting fitting.

The connection should not force the chain link into an unsuitable position or create concentrated contact at the edge of the shackle body.

Material

The material selection for a Marine End Shackle depends on its design, required mechanical properties, working load, manufacturing process and operating environment.

Marine end shackles are commonly manufactured from carbon steel or alloy steel, depending on the required strength level and applicable technical specification.

The material grade should be identified in the approved drawing, purchase specification or applicable manufacturing standard. It should not be determined solely from the product appearance.

Carbon Steel

Carbon steel may be used for marine shackles where the specified strength and mechanical properties are suitable for the intended application.

Material selection should consider:

Chemical composition

Yield strength

Tensile strength

Elongation

Impact properties, where required

Heat treatment requirements

The actual grade should comply with the buyer's technical specification.

Alloy Steel

Alloy steel may be selected for shackles requiring higher mechanical strength or specific toughness properties.

Depending on the grade and manufacturing specification, alloy steel components may undergo controlled heat treatment to achieve the required mechanical properties.

The heat treatment process should be controlled to ensure consistent properties throughout the load-bearing section.

Material Traceability

For marine and lifting applications, material traceability is important when required by the purchase specification or classification rules.

The supplier should be able to provide relevant material records, including:

Material grade and specification

Chemical composition

Mechanical test results

Heat number identification

Material test certificate, where specified

Material documentation should correspond to the actual production batch or component.

Corrosion Protection

Marine End Shackles are exposed to moisture, salt spray and other corrosive conditions.

Surface protection may include:

Hot-dip galvanizing

Protective painting

Other specified anti-corrosion coatings

The coating method should be selected according to the service environment and purchase requirements.

Coating thickness, surface preparation and appearance should be checked against the agreed specification. Any coating process should also take account of the shackle's dimensional tolerances and pin-fitting requirements.

How to Use Marine End Shackle?

A Marine End Shackle is installed at a designated connection point in a marine chain or mooring assembly. Its function is to provide a detachable mechanical connection between compatible components.

Before installation, the user should confirm the shackle type, dimensions, load rating and connection arrangement against the approved assembly drawing.

Check Component Compatibility

Before assembly, verify:

Shackle body dimensions

Pin diameter and length

Chain link diameter

Connecting eye or fitting dimensions

Applicable working load and design requirements

The connected components must have compatible geometry and load ratings.

Install the Pin

Position the shackle body around the designated connection point.

Align the pin holes and install the specified pin according to the manufacturer's assembly instructions.

The pin should pass through the body correctly without forced installation or unauthorized modification.

Secure the Pin

After installation, check that the pin is fully seated and that the locking arrangement is correctly fitted.

The retaining component should be installed according to the product design. An incomplete or incorrectly installed locking arrangement may allow the pin to move during service.

Check the Completed Connection

Before the assembly is put into operation, inspect the connection for:

Correct component positioning

Proper pin installation

Secure pin retention

Sufficient clearance between connected components

No visible cracks, deformation or abnormal contact

The assembly should be inspected according to the applicable maintenance and inspection requirements.

Important: A Marine End Shackle should not be used with components of unverified dimensions or load ratings. Its working load and permissible service conditions must be determined from the approved product specification.

Application

Marine End Shackles are used in ship anchoring systems, marine chain assemblies and other specified marine connection arrangements.

Their actual position and function depend on the vessel's approved equipment configuration.

Ship Anchor Chain Systems

End shackles can be used at designated connection points within anchor chain assemblies.

They may connect anchor chain sections with compatible terminal fittings, depending on the anchoring arrangement.

The shackle dimensions must match the chain diameter, link geometry and adjoining components.

Anchor and Swivel Connections

In certain anchoring arrangements, an end shackle is used to connect a chain assembly with a swivel or anchor-side fitting.

The connection must allow the components to work within their intended range of movement without creating interference or abnormal contact.

Commercial Vessels

Marine End Shackles may be specified for the anchoring equipment of:

Bulk carriers

Container ships

Oil tankers

General cargo vessels

Offshore support vessels

Other commercial ships

The required type and dimensions depend on the vessel's anchoring system design.

Offshore and Marine Engineering

End shackles may also be used in specified offshore chain assemblies and marine engineering connections.

For offshore applications, buyers should pay particular attention to the required chain grade, mechanical properties, design loads, environmental conditions and inspection requirements.

A standard marine end shackle should not automatically be considered suitable for permanent offshore mooring. The complete connection system must be verified against the project specification.

How To Choose?

How to Choose the Right Marine End Shackle

Selecting a Marine End Shackle requires more than confirming the nominal size. The shackle must match the connected components in terms of geometry, mechanical properties and service requirements.

Confirm the Shackle Type

First, identify the required shackle design.

Marine connection fittings may include different end shackle, D-type shackle, bow shackle and chain connecting designs.

These products may have different body shapes, pin arrangements and dimensional standards.

The buyer should provide a product drawing, reference sample or equipment specification to avoid selecting an incompatible design.

Confirm Dimensions

For replacement orders, buyers should confirm whether the existing shackle follows the original drawing or has been modified.

Nominal chain diameter alone is not sufficient to determine shackle compatibility.

Confirm Material Grade

Material selection should follow the specified mechanical requirements.

The buyer should confirm:

Material grade

Chemical composition

Tensile properties

Yield strength

Impact requirements, if applicable

Heat treatment requirements

For class-related orders, the material and manufacturing requirements should correspond to the applicable classification society rules and approved documentation.

Confirm Working Load Requirements

The required working load must be established according to the application and applicable design requirements.

Buyers should not select a shackle based only on its external dimensions or appearance.

The specified working load, proof load and breaking load are different technical parameters and should not be treated as interchangeable.

The supplier should provide the relevant load data and testing basis for the selected product.

Confirm Surface Treatment

The surface treatment should suit the operating environment.

For marine applications, hot-dip galvanizing or a specified protective coating may be required.

The buyer should confirm the coating type, thickness, surface preparation and any dimensional restrictions associated with the treatment process.

Confirm Standards and Inspection Requirements

Before placing an order, clarify:

Applicable manufacturing standard

Approved product drawing

Required material documentation

Heat treatment requirements

Proof load or other mechanical testing

NDT requirements, if specified

Classification society inspection requirements, if applicable

Not every marine end shackle order has identical certification and inspection requirements. These should be established according to the vessel, project and purchase specification.

How To Choose A Reliable Marine Anchor Shackle Supplier?

Supplier Evaluation for Marine End Shackle

When purchasing Marine End Shackles, buyers should evaluate the supplier's ability to control material quality, manufacturing dimensions, mechanical properties and final inspection.

A supplier should be able to explain how the product is manufactured and how its conformity with the purchase specification is verified.

Manufacturing Capability

Confirm whether the supplier has experience manufacturing the required shackle type.

The supplier should understand the relationship between the body geometry, pin dimensions, locking arrangement and connected chain components.

For custom or replacement orders, the supplier should be able to work from technical drawings or physical samples.

Material Control

The supplier should identify the material grade and corresponding material specification before production.

Material records should be traceable to the relevant production batch where traceability is required.

Buyers should check whether the supplier can provide material certificates and mechanical test reports according to the purchase requirements.

Forging and Heat Treatment Control

For forged end shackles, the supplier should be able to explain the forging process and relevant process controls.

Important points include:

Raw material inspection

Forging temperature control

Forging deformation and forming quality

Heat treatment procedures

Mechanical property verification

Where applicable, heat treatment records should be available for review.

Dimensional and Assembly Control

The supplier should have the equipment and inspection procedures needed to verify the shackle body and pin dimensions.

Particular attention should be given to the pin-hole alignment, pin fit, internal opening and locking arrangement.

These dimensions affect both assembly compatibility and the way loads are transferred through the connection.

Testing and Inspection Records

Ask the supplier to identify the inspection items required for the order.

Depending on the product specification, these may include:

Dimensional inspection

Visual inspection

Material testing

Hardness testing

Proof load testing

Magnetic particle testing (MT)

Other specified NDT methods

The inspection scope should be agreed before production rather than assumed to be the same for every order.

Documentation and Delivery Control

For export orders, the supplier should confirm the documents required before shipment.

These may include:

Commercial invoice and packing list

Product drawings

Material test certificates

Inspection reports

Load test reports

Surface treatment records

Classification certificates, where required

The buyer should also confirm product marking, packing method, delivery schedule and responsibility for any non-conforming products.

FAQ

1. What is a Marine End Shackle?

A Marine End Shackle is a mechanical connecting fitting used in marine chain and anchoring assemblies. It consists of a load-bearing body and a removable pin, allowing two compatible components to be connected and disconnected when required.

2. What is the difference between an End Shackle and a Joining Shackle?

An End Shackle is generally designed for a designated terminal or end connection in a chain assembly. A Joining Shackle is used to connect two separate chain sections or compatible chain components.

Their shapes, dimensions and connection arrangements may differ. The correct type should be selected according to the assembly drawing.

3. Can a Marine End Shackle connect directly to an anchor chain?

Yes, provided that the shackle is specifically designed for the chain connection and its dimensions are compatible with the chain link.

The chain diameter, link geometry, internal clearance and pin dimensions should all be checked before installation.

4. What materials are used for Marine End Shackles?

Carbon steel and alloy steel are commonly used, depending on the required mechanical properties and application.

The actual material grade should follow the approved drawing, manufacturing standard or buyer's specification.

5. Are Marine End Shackles forged or cast?

The manufacturing method depends on the product design and specification.

Forging is commonly used for load-bearing shackles because it allows the material to be formed into the required geometry. Other manufacturing methods may be used where permitted by the applicable design and standard.

The manufacturing process should be confirmed for each product.

6. What is the purpose of the pin locking arrangement?

The locking arrangement prevents unintended movement or loosening of the transverse pin during service.

It is an important part of the connection assembly and should be correctly installed according to the manufacturer's design.

7. Are Marine End Shackles supplied with hot-dip galvanizing?

Yes. Hot-dip galvanizing can be specified for marine applications requiring corrosion protection.

The coating requirements should be confirmed according to the operating environment, dimensional tolerances and purchase specification.

8. What inspections are required for Marine End Shackles?

Typical inspection items include visual inspection, dimensional inspection and material verification.

Depending on the specified application and requirements, proof load testing, hardness testing, MT or other NDT methods may also be required.

9. Do Marine End Shackles require classification society certification?

Not every order requires classification society certification.

The requirement depends on the vessel, equipment application, project specification and applicable classification rules. Buyers should specify the required classification society and inspection scope when requesting a quotation.
